Embedded AI — BETA 2026

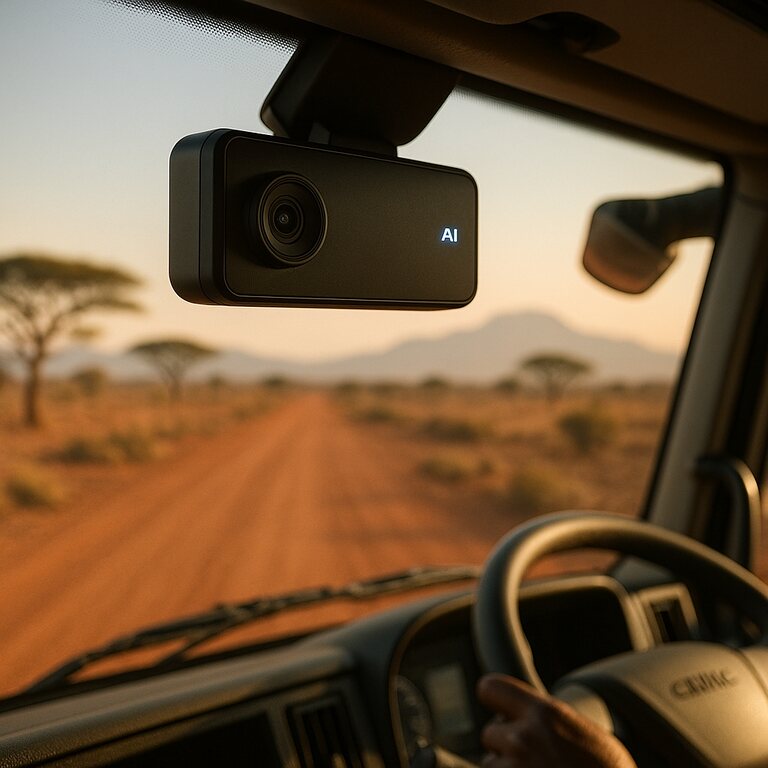

Compagnon PRO SoC

Smart dashcam. ADAS + DMS on-device.

Rockchip RV1106 SoC (1 TOPS NPU), Python on-device. PERCLOS fatigue detection, forward collision warning, biometric driver ID. Safety taken to the next level.

Pilot program AI features
Embedded intelligence

AI in the service of safety

Everything is processed locally on the device — no video uploaded to the cloud, no mobile bandwidth wasted.

ADAS

Driver assistance

Real-time detection of road hazards, instant audio alerts before impact.

  • Forward Collision Warning (FCW)
  • Lane Departure Warning (LDW)
  • Pedestrian detection
  • Headway monitoring
DMS

Driver monitoring

AI continuously analyzes the driver's face and gaze — alerts before an incident occurs.

  • Fatigue detection (PERCLOS)
  • Distraction detection — phone use, eyes off road
  • Drowsiness detection
  • Real-time voice alert
DriverID

Biometric identification

Driver face recognition at startup. Automatic linking to the FleetMan profile.

  • Recognition at engine start
  • FleetMan profile auto-attached
  • Optional immobilizer for unauthorized drivers
PCW

Pre-Crash Warning

360° detection of front and side collision threats. Audio + vibration pre-alarm.

  • Audio + vibration pre-alarm
  • Automatic event-triggered video recording
  • Audit-compliant blackbox / EDR
Live from the cabin

The client app, in real conditions

Real-time view of road + cabin cameras, GPS position, speed vs limit, ADAS/DMS events — all in the fleet manager's pocket.

Front camera — live feed

CH1 — Road camera

Live HD feed with on-demand 10s photo / video capture and an integrated map view.

Cabin camera — driver monitoring

CH2 — Cabin camera

DMS driver monitoring. Fatigue detection, distraction detection, biometric ID.

Drive app — speedometer + map

Drive — Score & speed

Driver dashboard. Real-time score, over-speed alerts, detected events.

On-device algorithms

Under the hood — what the 1 TOPS NPU does

Everything is processed locally on the RV1106 device. No video uploaded to the cloud, inference latency < 100 ms, works offline.

FCW

Forward Collision Warning

Vehicle detection plus Time-To-Collision (TTC) on the road camera feed. INT8-quantized YOLOv5-nano model running on the NPU.

  • Model: YOLOv5-nano · 8 vehicle classes
  • TTC threshold < 2.5 s triggers alarm
  • 25 fps continuous inference
LDW

Lane Departure Warning

Lane-marking detection via classical algorithm (Canny edges + Hough transform) — more robust than pure CNN on poorly-marked African roads.

  • Activates above 60 km/h
  • Tolerates dashed and broken lines
  • CPU-only (no NPU consumption)
PCW

Pedestrian Pre-Crash Warning

Pedestrian detection plus IoU (Intersection over Union) tracking between frames. If a pedestrian's trajectory crosses the vehicle's, voice + flash alert.

  • Multi-object tracking with ByteTrack
  • Distinguishes pedestrian / cyclist / moto-taxi
  • Optimized for dense urban scenes
DMS Fatigue

PERCLOS on IR camera

Eyelid-closure percentage measured over a 1-minute window (PERCLOS-80). IR cabin camera works at night without disturbing the driver.

  • Facial landmarks (Mediapipe)
  • Progressive alert: warning, chime, voice
  • Tolerates glasses and shadows
DMS Distraction

Head pose & phone use

6-DoF head-pose estimation (Perspective-n-Point) plus "phone-in-hand" object detection. Eyes off the road for > 3 s or a phone in hand triggers an immediate alert.

  • Geometric PnP algorithm (no training required)
  • 3 angle levels: OK / warning / alert
  • Phone detection via YOLO class 21
DriverID

ArcFace face recognition

Driver identification at startup via facial embedding (ArcFace 512-D). Matched against the FleetMan database with a cosine-similarity threshold of 0.6.

  • Embedding stored encrypted locally
  • Engine-start blocked for unauthorized driver
  • Anti-spoofing photo / video
Video & EDR

H.264 encoding, 30-day archive, selective upload

Local video recording is continuous but does not consume 4G bandwidth. Only event clips (ADAS / DMS / impact) are uploaded automatically to FleetMan, or on a dispatcher's request.

H.264 encoding
Hardware encoder, 1080p 25fps, ~2 Mbps bitrate
eMMC 32 GB + microSD
~30 days of loop recording
Selective upload
30s pre + 30s post clip on event
RTMP / RTSP live
Camera stream on dispatcher request
Video & EDR specifications
Cameras2× IMX 1080p
Night visionIR 850 nm
EncoderH.264 / H.265 HW
Framerate25 fps
AudioI2S DAC + TTS
Blackbox40 s pre + 30 s post
Clip formatMP4 + CSV metadata
OTADual partition
Compagnon + Vision

All Compagnon features, plus vision

The PRO SoC integrates the Compagnon's ESP32 as a secondary MCU, so everything Compagnon does is preserved: Driver Score, Zigbee, ESP-NOW Mesh, Blackbox EDR, Eco-driving, etc.

Real-time Driver Score

30-day Blackbox EDR

Zigbee network · 8 sensors

ESP-NOW V2V mesh

Eco-driving coaching

Road Quality Index

OBD-II / CAN bus

IO Expander · 16 GPIO

See full Compagnon firmware details →

Technical specs

Cutting-edge hardware

SoC
Rockchip RV1106
1 TOPS NPU · ARM Cortex-A7
Cameras
2× IMX sensors
Road + cabin, 1080p, IR night vision
Stack
Python on-device
OpenCV, NPU runtime, MQTT
Storage
eMMC 32 GB + microSD
30-day blackbox, selective upload
Connectivity
4G LTE + WiFi
Optional RTMP/RTSP streaming
GPS
Multi-constellation
GPS, GLONASS, Galileo, BeiDou
Power
9-36V DC
2-hour backup battery
Certif.
CE, e-Mark
IP54

Join the pilot program

Compagnon PRO SoC is in BETA. Early pilot fleets get preferential pricing and dedicated support.

Apply to the pilot program
